UYGALAXY 1.2″ Stroke Micro Electric Linear Actuator 12V – 32N/7.2lb Speed 1.2″/sec Mini Waterproof Metal Mini Motion Actuator with Mounting Bracket for DIY Robot Cabinet Drawer Shutter Cosplay(12V 30mm Stroke)

$50.00

  • ✅Spec: 12VDC Linear Actuator Stroke Length= 1.2inch(30mm); Travel speed= 1.2 inch/sec (30 mm/s), force 32N(7.2lbs), IP65 waterproof, made of metal material for indoor outdoors.

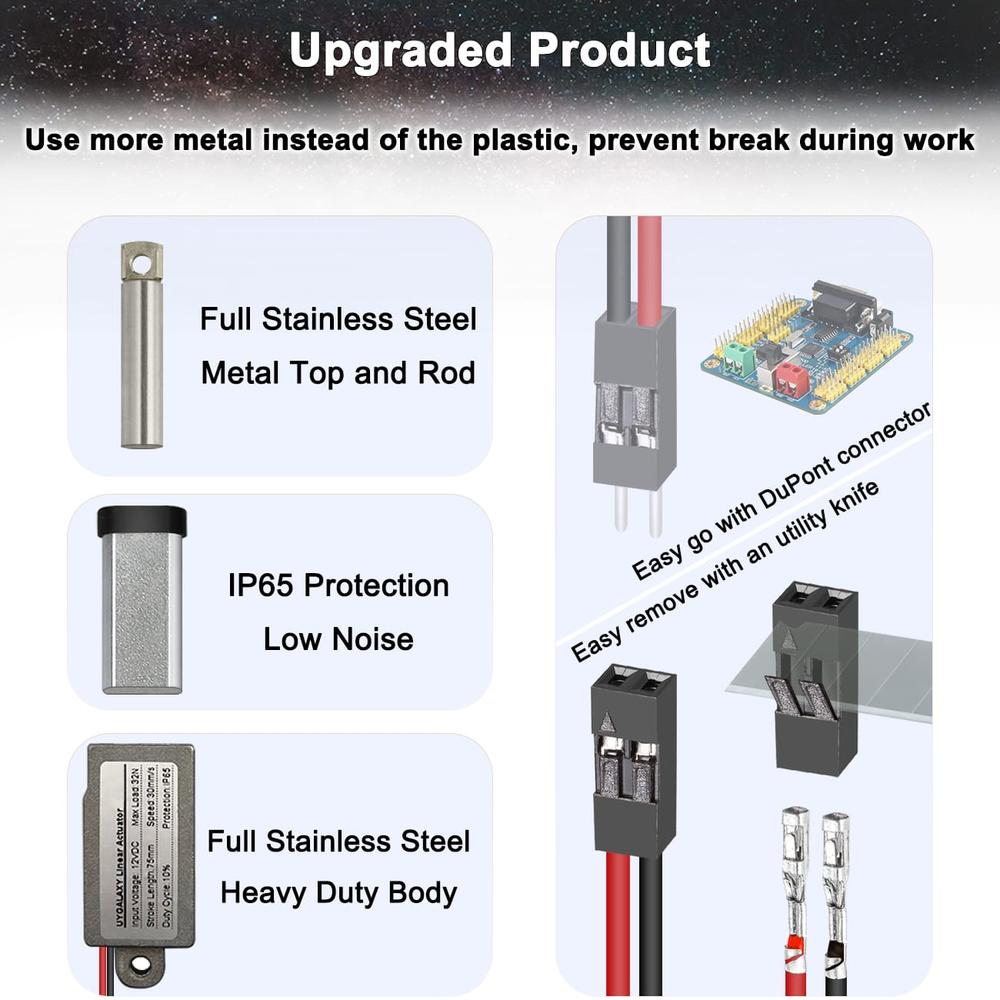

  • ✅Made of Metal Material: Our micro linear actuator made of high quality aluminum, the both ends made of metal material, it’s updated design to avoid the extent and retract rod breaks when overweight. Built-in limit switch that can stop at any position, automatically stop when It reaches the top.
  • ✅Special low noise as designed: level under 50dB, it has been carefully considered for the ears of your family and neighbors.
  • ✅Widely used: Lightweight and compact motion linear actuator, suitable for your DIY project. Like pet feeder, home automation, robot’s gripper, toys, cabinet door, drawer, shutter and so on. When Halloween festivals or cosplay show coming, it enhances your wearable devices, like the spread wings for hawk cosplay.
  • ✅ Easy set up & Safe: Quick mounted by using brackets, and easy connect the actuator to your 12-volt safe power supply. The package included 1 mini linear actuator and 2 bracket sets.
Categories: , Tag:

UYGALAXY Micro Linear Actuator for up and down, which is used for your home, such as home automation, cabinet door, drawer, shutter.
And also used for your DIY project, such as robot arms, toys, cosplay.
Great for electric open chicken coop/pigeon/rabbit cage/pet nest door.

Specification:
Input Voltage: DC 12V
Working current: 0.2A

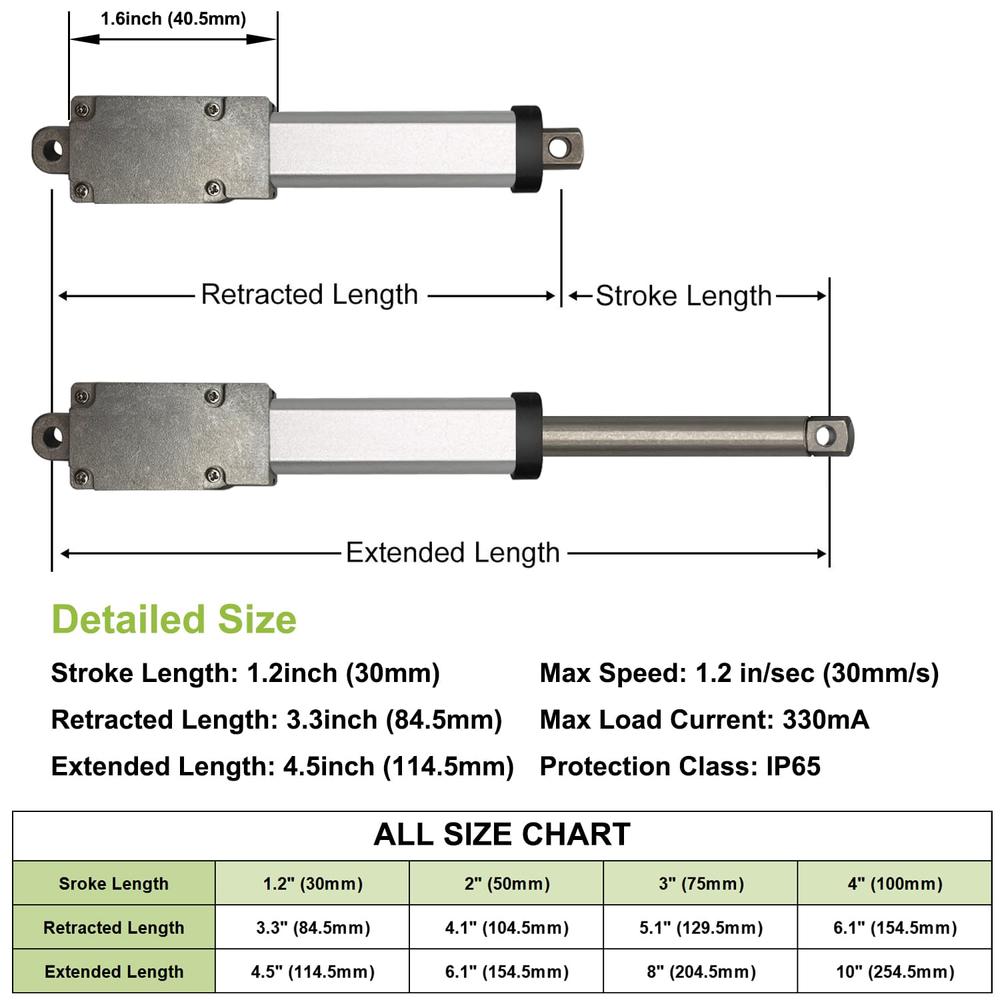

Stroke Length: 1.2in/30mm
Retracted Length = 84.5 mm( 3.3”)
Extended Length = 114.5 mm( 4.5”)
Material: Aluminum alloy
Load capacity: 7.2lb/32N

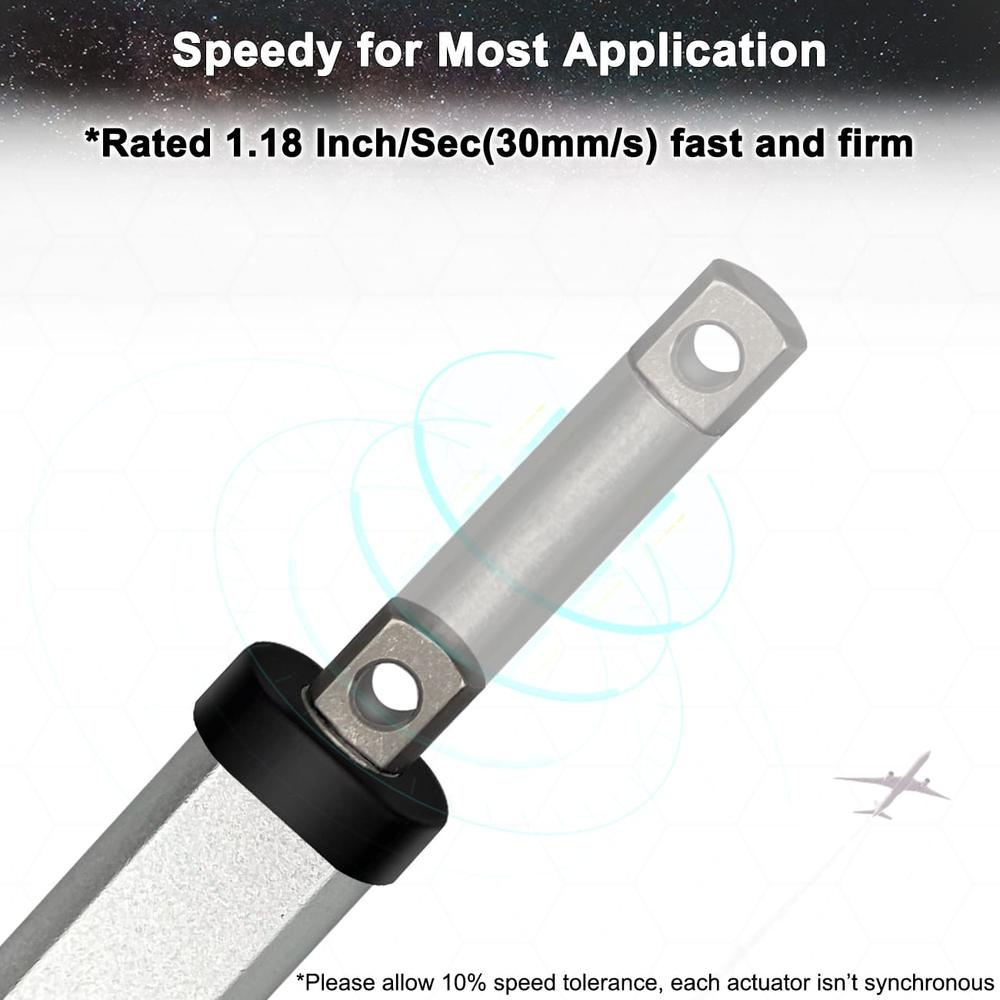

Speed: 1.2″”/sec(30mm/s)
Waterproof Protection: IP65
Duty cycle: 10%
Working Temperature: -13℉~+140℉

Feature:
Low noise design, noise level less than 50dB.
Compact size and lightweight, easy to install with mounting bracket.
Built-in limit switch that it will turn off power when the device reaches the end of stroke to protect the motor. It will hold its position when the power is off.
Made of high quality aluminum, more safe & well constructed for long-term use.

How to protect your actuator?
The actual load does not exceed the rated load. Please use the 12V DC power battery. If use smaller voltage, the product cannot work well, use a bigger voltage maybe will damage to the product.
It should be noted that the mini linear actuator is in extreme operating conditions for a long time will reduce product life.
Please don’t store or operate in high temperature or humid environment, and do not place in corrosive gas, which will reduce motor efficiency.
When soldering is required on the positive and negative power supply’s motor terminals, the soldering iron temperature is 340°C±40°C. Within 3 seconds of heating time.

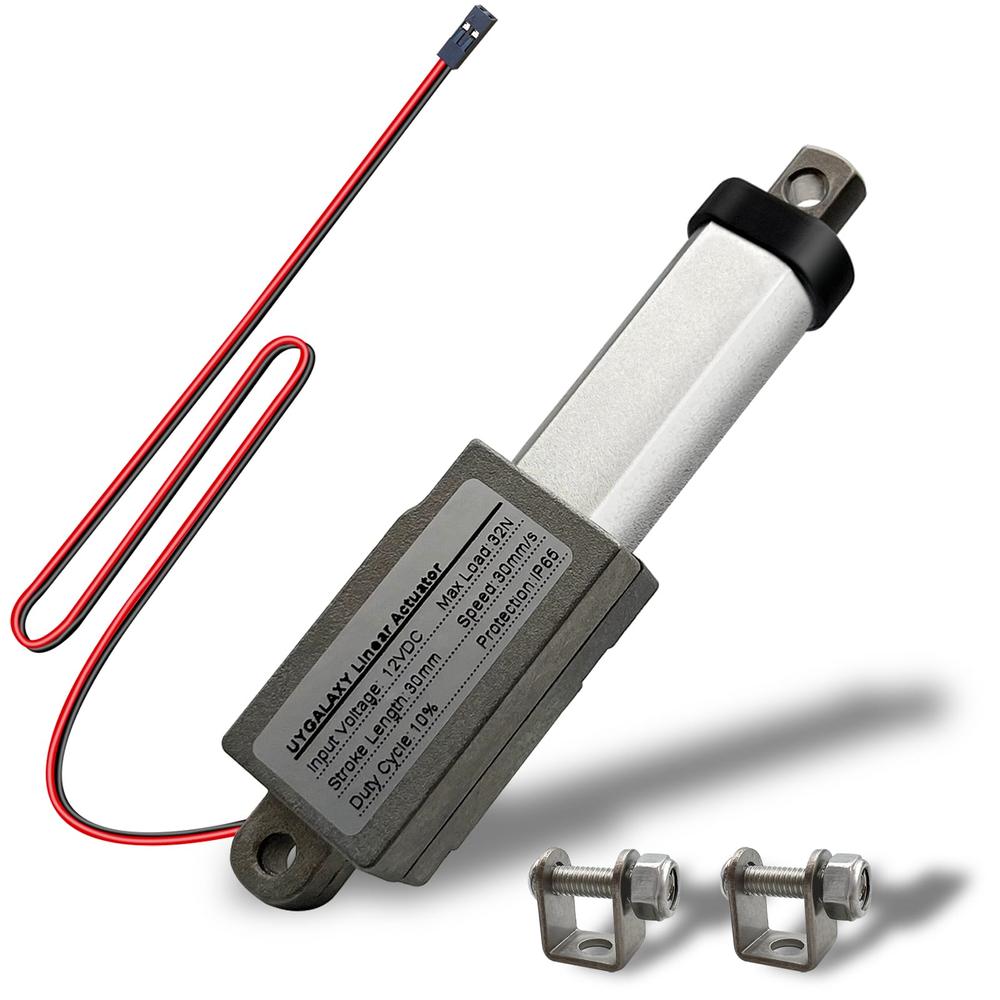

Package Included:
1 x Mini Linear Actuator
2 x Mounting Brackets

Weight0.15 kg
Dimensions11 × 3 × 2.5 cm

Brand

UYGALAXY

It’s the reliable and valuable brand of the roll up motor, in the most popular online shop,like amazon. It’s started from scratch by getting familiar with farmer and know what they do, what they care.The main scope of UYGALAXY is based on the motor drived items for rolling, like roll up motor for film and tarp etc, on vegetable, fruit, flower, poultry, livestock, cannabis cultivating greenhouse. Also the door roll up motor, the home curtain roller, and linear actuators.Your satisfaction and convenience is the key to lead UYGALAXY to go further, as a customer-centric retailer and wholesaler and exporter.
