UYGALAXY Top Roll Up Motor System, 2 Pack Electric Greenhouse Film Roll Up Motors With Pivot Set+ Electric Intelligent Thermostat Controller (AC110V~220V to DC24V) for Greenhouses Ventilation, Automatic Venting Kit

Package included：
2* Roll up motor
2* Pivot set (accessory of the motor)
1* Joint box(transformer+controller)
1* Power Cable(1m)
1* Temperature NTC probe(5m)
1* Raindrop sensor(5m)
1* Manual

The electric roll-up motor for greenhouse is widely used in Greenhouse. With temperature function controller to control 24V motor for forward , reverse and stop.
For controlling the electric roll-up motor for ventilation, which is used extensively in greenhouse.

● Roll up motor

Product Advantage
1. IP 66 waterproof protection class.
2. Compact size and low noise, easy installation.
3. can be install on the top of greenhouse, and side of the greenhouse(needs creeper).
4. Roll up film tube length up to 360ft ; And 19ft height when 1-3/8inch OD(Outside Diameter) 35mm top rail tube,compatible with OD1.315″ pipe.
5. Setting the limit switches on hoop house roll up ventilation motors.

Specifications
Power: 100 watt
Travel Limit: 40 loops
Voltage: DC 24v
Speed: 2.8rpm
Rated Current: 4.0A
Torque: 80N.m

How to install:

1. Tighten the roll tube with the product by bolts
2. Fix the film on the film tube through the solid film clamp, keeping the film tube in line with the output shaft of the product.
3. After fixing and starting the winder power supply, the film can be opened and closed.

Material selection:

It’s recommended 16AWG cord if within 164ft(50m) from the motors to controller or power.

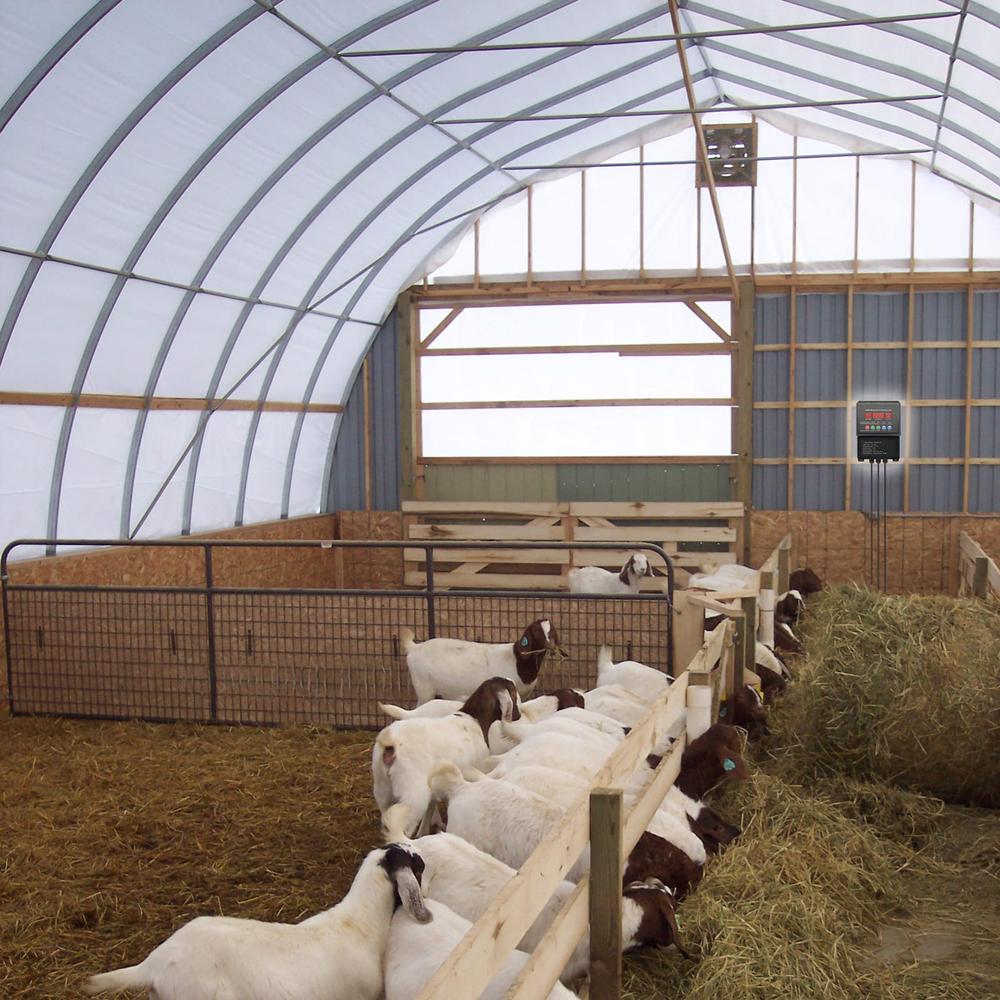

● Thermostat controls for greenhouse roll up motors

Voltage: AC110v ~AC 220v to DC24v
Input: 110vac and 220vac
Output1: 24vdc
Output2: 24vdc
Control: Forward(up)/ Reverse(down)
Color: Black

Modes: Auto / Manual
Switch Style: Buttons
The Loads Application: Motor, Linear actuators, etc.

Probe work precision

Temperature unit: Celsius
Temperature range: -9~70°C
Control range:-7~50°C
Control precision: ±1°C
Probe parameter: 25°C/10K  B=3435
Use environment: 1~65°C   Humidity: <85%RH
Temperature probe length: 5m
Raindrop sensor length: 5m

Tips:
1.Professional construction workers or electricians are required to operate, to avoid safety accidents due to electric shock.
2.The motor with limit switch would stop once hitting the limit, the controller has limit time for assisting, too.
3.The product is without timer control, only temperature control.
4.Please install it inside the house.
5.Thank you.
