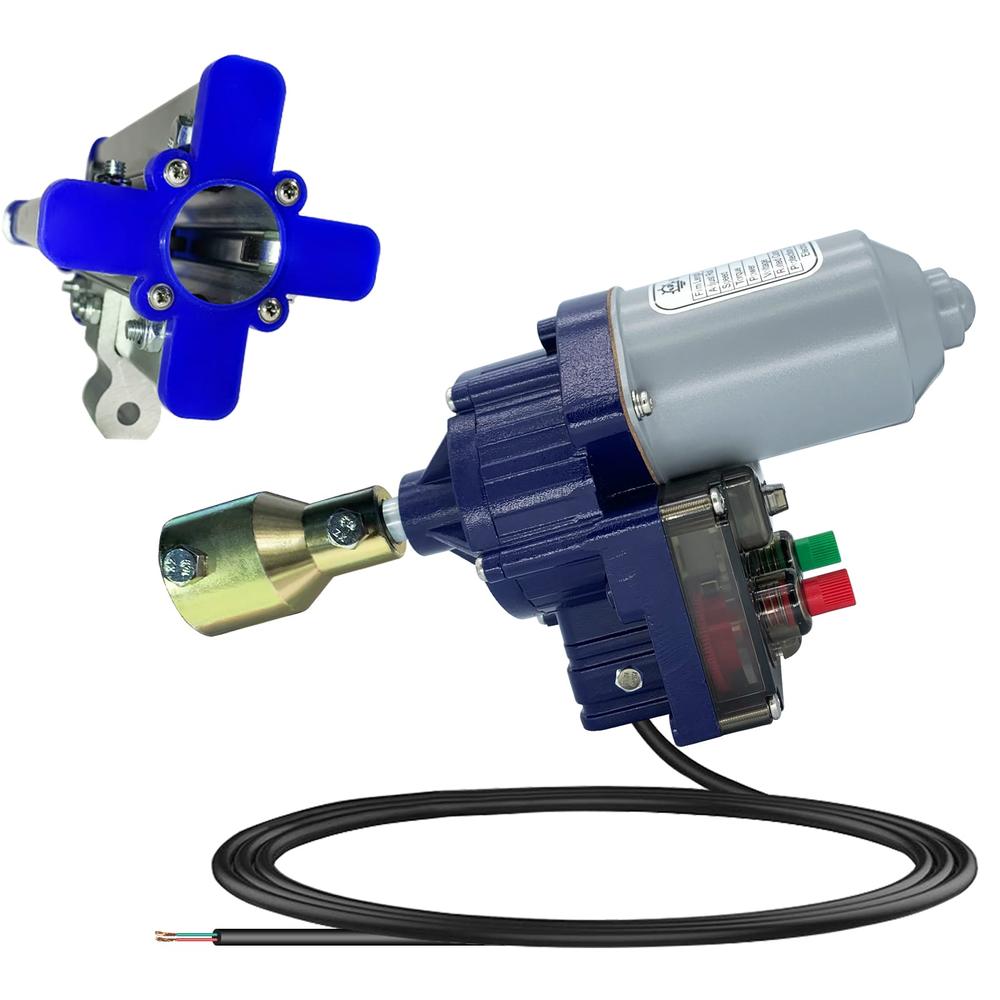

The package included:
1* Roll up motor
1* Creeper

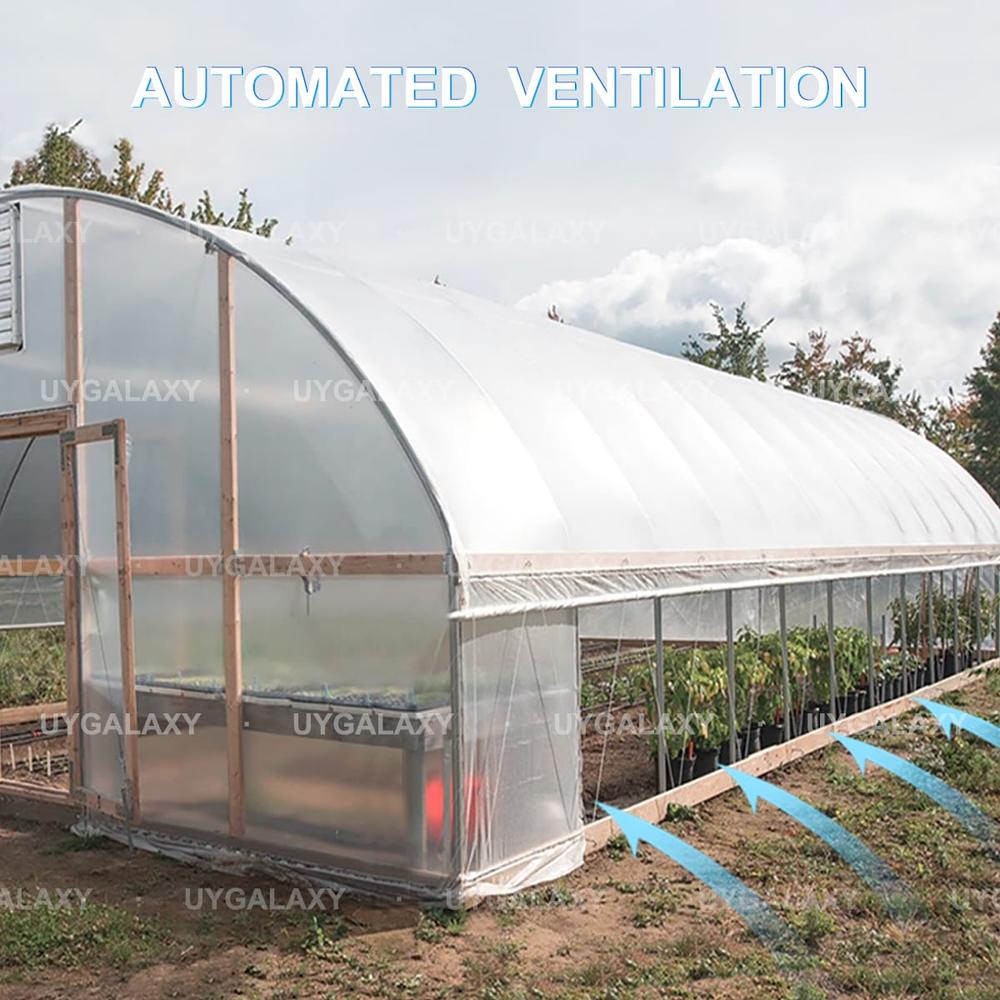

The electric roll-up motor for greenhouse is used extensively in the greenhouse.
Such as the solar greenhouse, vegetable greenhouse, culture greenhouse, multi-span film greenhouse and other assembled greenhouse, by which to open or close the side or top film curtain through the rolling film bar(it needs a power reverse switch to control).
Product Advantage
1. IP66 waterproof protection class.
2. Compact size and low noise, easy installation.

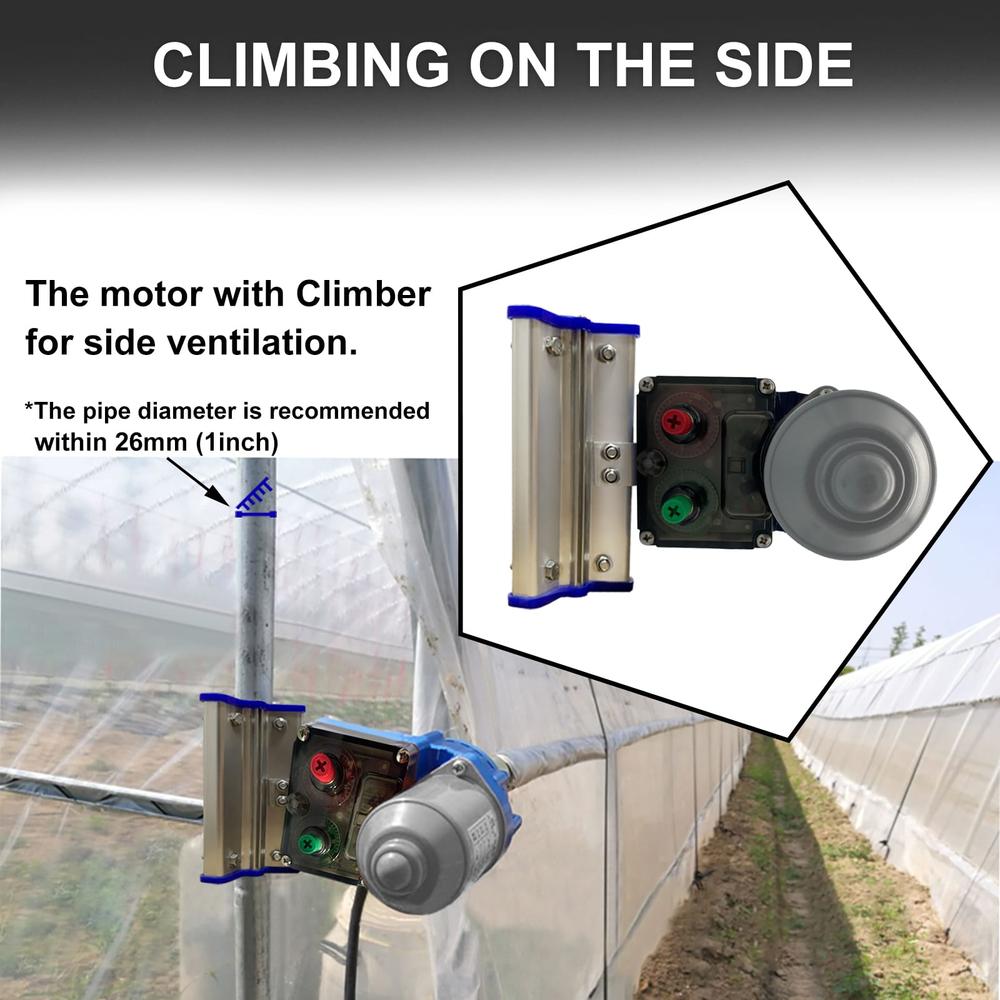

3. Can be installed on the top of the greenhouse, and side of the greenhouse.
4. Roll up film tube length up to 360ft ; And 19ft height when OD 1 3/8inch (Outside Diameter 34.9mm) top rail tube and compatible with OD1.315″ guidepipe.
5. Setting the limit switches on hoop house roll up ventilation motors.

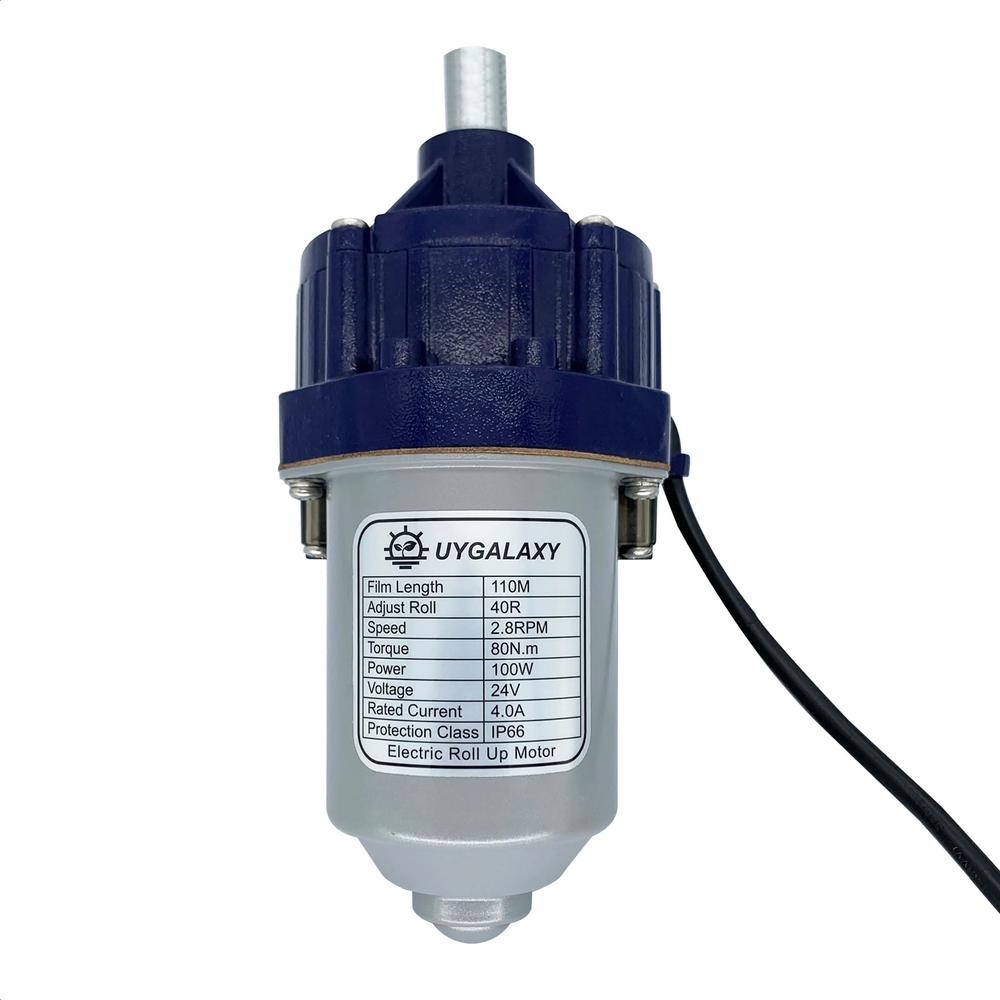

Specifications
Power: 100 watt
Travel Limit: 40 rotations
Voltage: DC 24v
Speed: 2.8rpm
Rated Current: 4.0A
Torque: 80N.m
Protection Class: IP66
Maximum roll bar length: 360ft (110m)
Color: Blue and Gray
How to install:
1. Tighten the roll tube with the product by bolts
2. Fix the film on the film tube through the solid film clamp, keeping the film tube in line with the output shaft(roll bar) of the motor.
3. After fixing and starting the winder power supply, the film tube can be opened and closed.

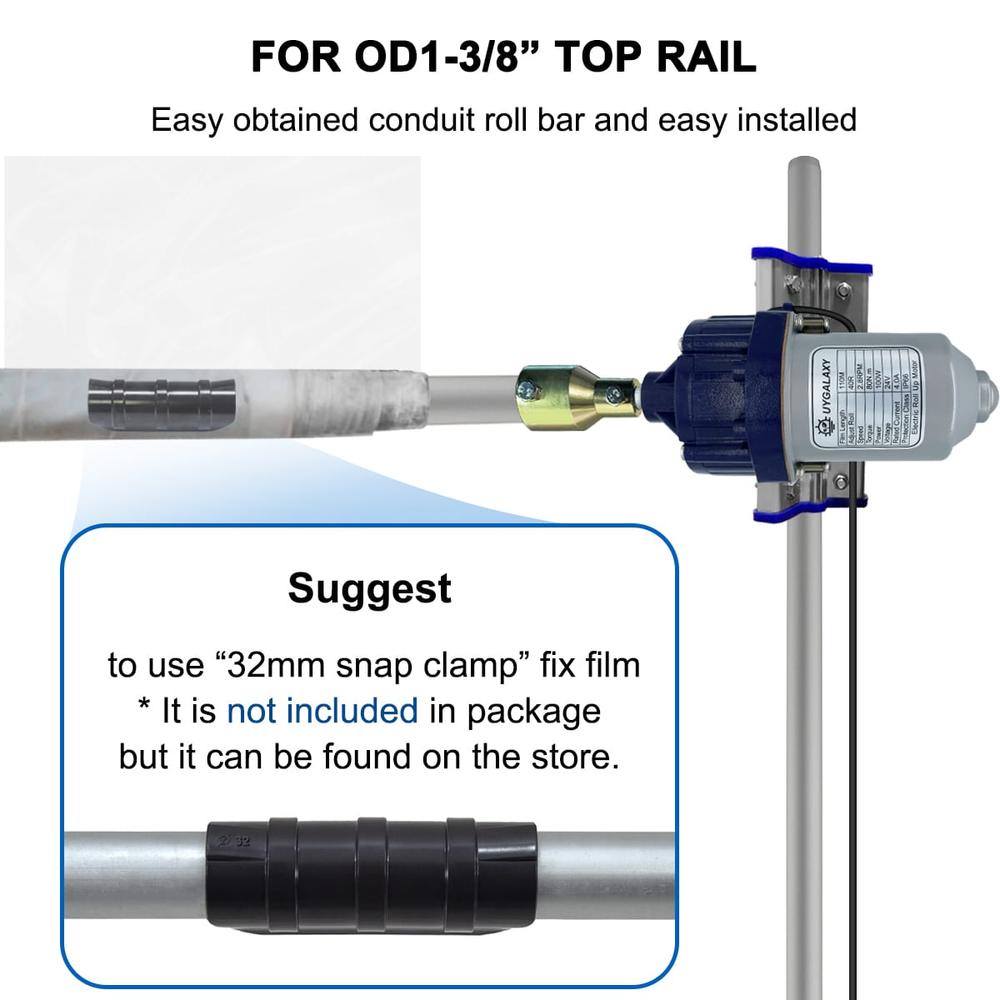

The galvanized tube used for roll bar can be NPS 1inch, DN25mm or 1-3/8inch top rail, go with OD1-3/8″ top rail tube and compatible with OD1.315″ pipe.
Material selection:
1. It’s recommended 16AWG cord if within 164ft (50m) from the motors to a controller or power.
2. If connect 20 sets of motors to 1 transformer, it is recommended to use 3 AWG aluminum cord or 7 AWG copper cord as the main line to connect to the transformer (the motors in parallel.)
3. If 20 electric roll up motors are connected at the same time, it is recommended to use 1600W ~ 2000W transformer.

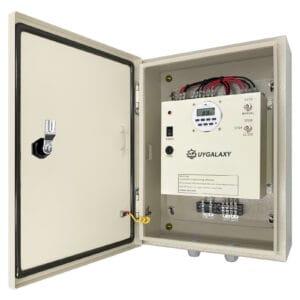

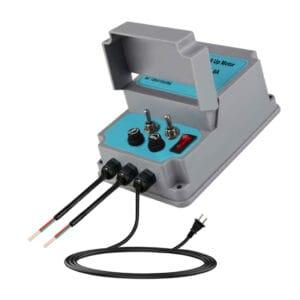

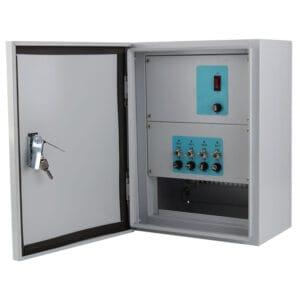

It needs to work with a controller to operate, please click here to see the matched controllers.
